Pressure Equipment Rental
Pressure Measurement
Process Pressure Gauges
Industrial-grade process pressure gauges built for demanding field and facility applications. IP67 rated for dust and water resistance, with stainless wetted parts and Bourdon tube element for reliable, accurate readings across a wide pressure range. Available in various sizes with multiple process connection options.
| Specification | Details |
|---|---|
| Protection | IP67 |
| Dial Size | 4.5" |
| Pressure Range | Vacuum to 20,000 PSI |
| Accuracy | 0.5% |
| Wetted Parts | Stainless Steel |
| Element | Bourdon Tube |
| Case Material | Polypropylene |
| Process Connection | 1/4" NPT, 1/2" NPT |
| Approval | S3 Safety Level |
Pressure Testing Equipment

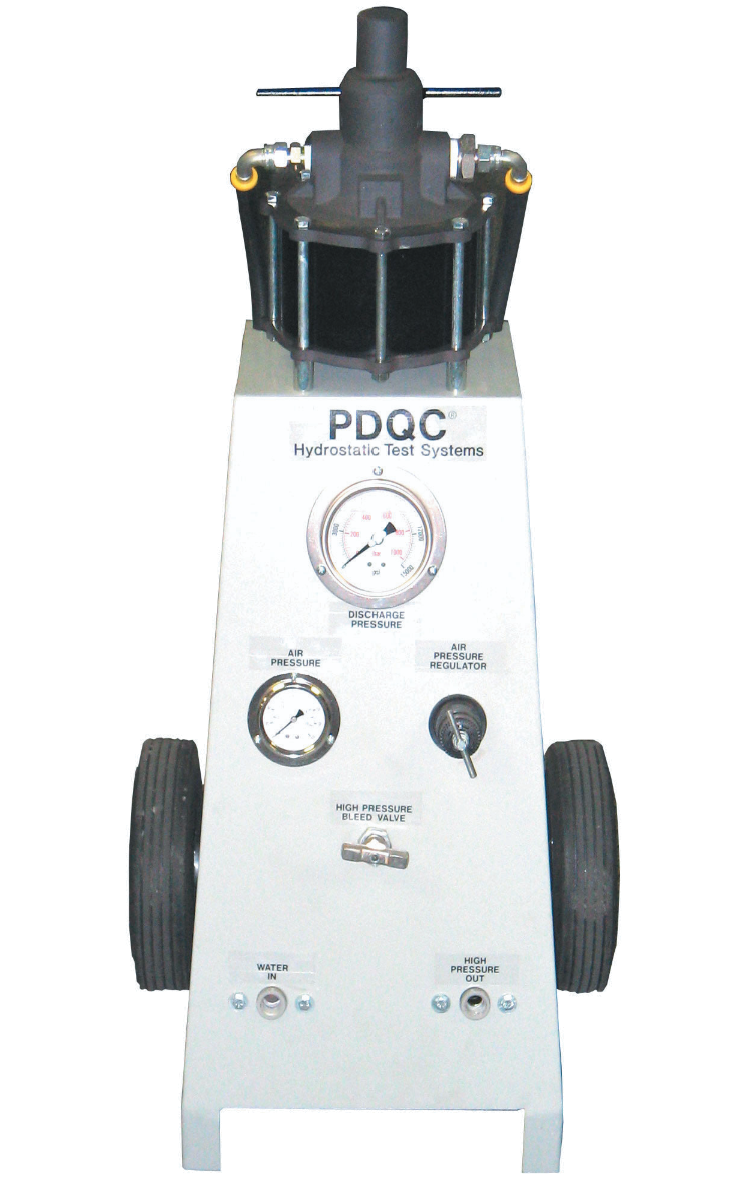

Hydrostatic Test System
Air-operated hydraulic pump systems operating on the efficient principle of pressure intensification through differential areas. Following Boyle's Law, a larger air-driven piston delivers pressure to a proportionally smaller hydraulic piston — providing high-pressure fluid flow for hydrostatic testing of pipe, vessels, and equipment.
| Specification | Details |
|---|---|
| Model | PDQC-10000 |
| Maximum Pressure | 9,700 PSI |
| Volume at 100 CPM | 7.00 – 11.00 GPM |
| Max Air Required | 56 CFM |
Ready to Get Started?
Contact us today for a free quote on calibration, equipment rental, repairs, and more.
