Pipe Preparation & Flange Facing Equipment Rental
Clamshell OD cutters, ID bevelers, and portable flange facers for field and shop pipe preparation
Pipe Preparation Equipment

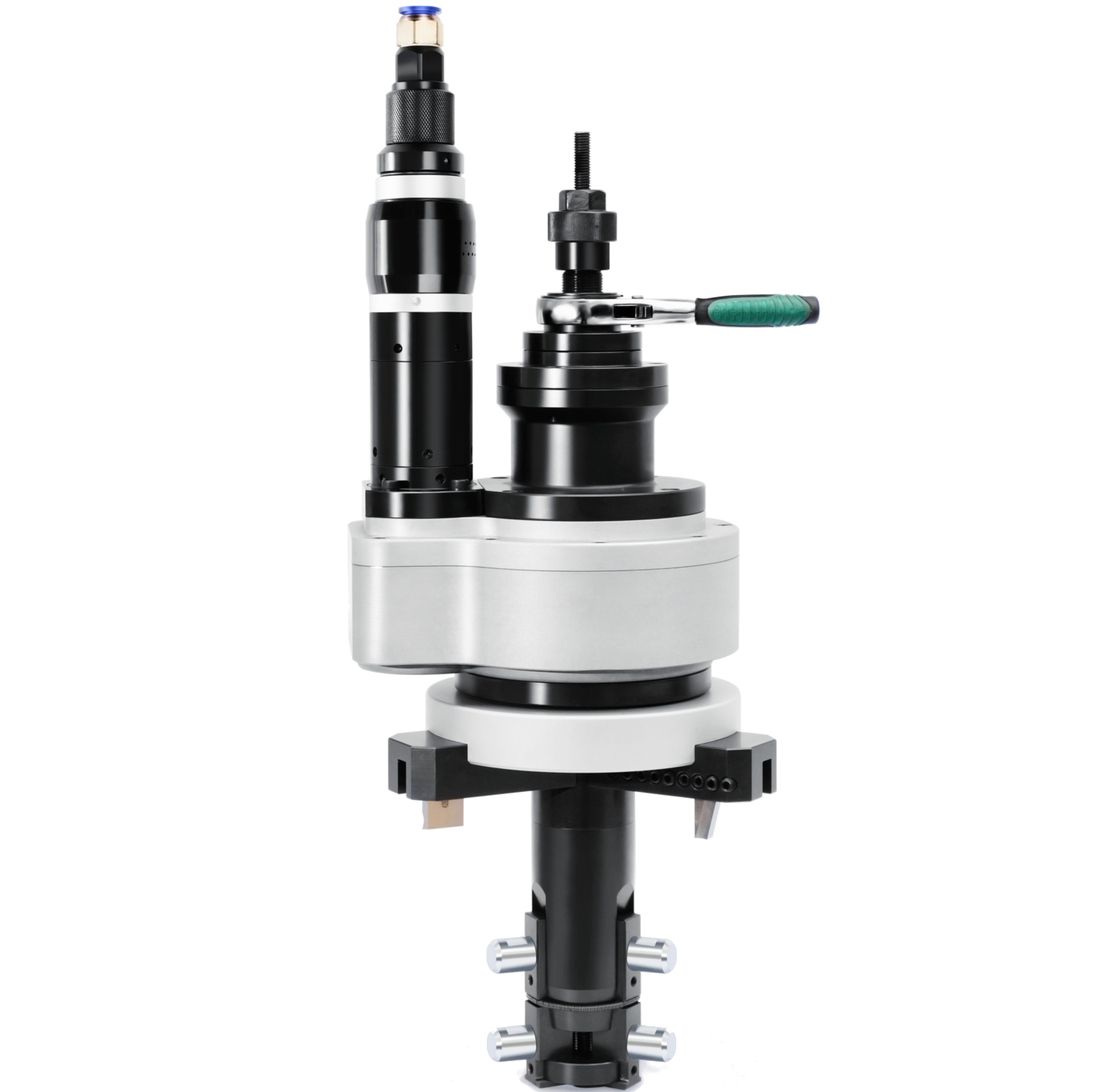

ID Cutter / Beveler (ID Mount)
The BT series ID-mounted cutter and beveler delivers precise pipe end preparation for welding, threading, and fitting applications. Mounts internally for fast setup and accurate cuts — ideal for field and shop use across a wide range of pipe sizes.
| Model | Pipe OD Range | Metric Range |
|---|---|---|
| BT-1 | 0.62" – 1.30" | 20mm – 28mm |
| BT-3 | 1.00" – 3.50" | 28mm – 76mm |
| BT-6 | 2.30" – 6.50" | 60mm – 170mm |
| BT-8 | 2.50" – 8.60" | 65mm – 210mm |
| BT-14 | 5.70" – 14.00" | 150mm – 340mm |
OD Mounted Pipe Cutting
Clamshell OD Pipe Cutters & Bevelers
Our clamshell split-frame pipe cutters and bevelers clamp around the outside of the pipe for cutting, beveling, and facing operations without rotating the pipe. Available in 17 sizes covering 1" through 48" pipe — suitable for carbon steel, stainless, alloy, and chrome pipe in the field or shop.
| Model | Pipe Range |
|---|---|
| CS-6 | 1.00" – 6.00" |
| CS-8 | 2.00" – 8.00" |
| CS-10 | 4.00" – 10.00" |
| CS-12 | 6.00" – 12.00" |
| CS-14 | 8.00" – 14.00" |
| CS-16 | 10.00" – 16.00" |
| CS-18 | 12.00" – 18.00" |
| CS-20 | 14.00" – 20.00" |
| CS-22 | 16.00" – 22.00" |
| CS-24 | 18.00" – 24.00" |
| CS-26 | 20.00" – 26.00" |
| CS-28 | 22.00" – 28.00" |
| CS-30 | 24.00" – 30.00" |
| CS-32 | 26.00" – 32.00" |
| CS-36 | 30.00" – 36.00" |
| CS-42 | 36.00" – 42.00" |
| CS-48 | 40.00" – 48.00" |
Flange Facing Equipment

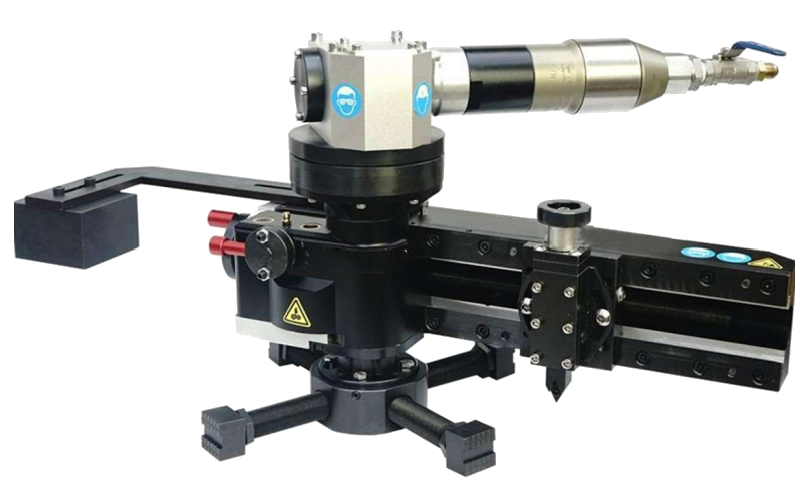

Portable Flange Facer
The FMI-24 is a versatile portable flange facing machine capable of facing, beveling, and turning pipe, valves, and pump flanges to machine shop accuracy — right in the field. The three-piece mounting system allows quick and easy setup and alignment by a single operator.
| Model | Capacity | Description |
|---|---|---|
| FMI-24 | 2" – 24" | Face, bevel & turn flanges, valves & pump flanges |
